How do I find the ID of an object, model, user or search?

The UUID (Universal Unique Identifier) concept ensures that a unique ID is assigned to each object when it is created. Depending on the case, the ID can be determined via the web client and/or the Administration Toolkit (ATK).

Which IDs can I determine via web client or Administration-Toolkit (ATK)? ​

How is a Share-URL constructed?

Example:

https://company-process-portal.com/main.view?repoid=ed77ac57-5204-438f-b1ae-df52be9552a1&id=820e6d29-0348-4c15-aa36-92f086ff0cd6&libObjID=14a6bed2-071f-42af-afc7-9b00e6ae97a2&at=1&t=view&vt=graphical&scenarioID=anp_scenario_1_design_and_document&lang=en#0

Determination on all versions

​This guide applies to all BOC Management Office Products.

Models and Objects:

The steps described below apply to both objects and models.

Step	Description

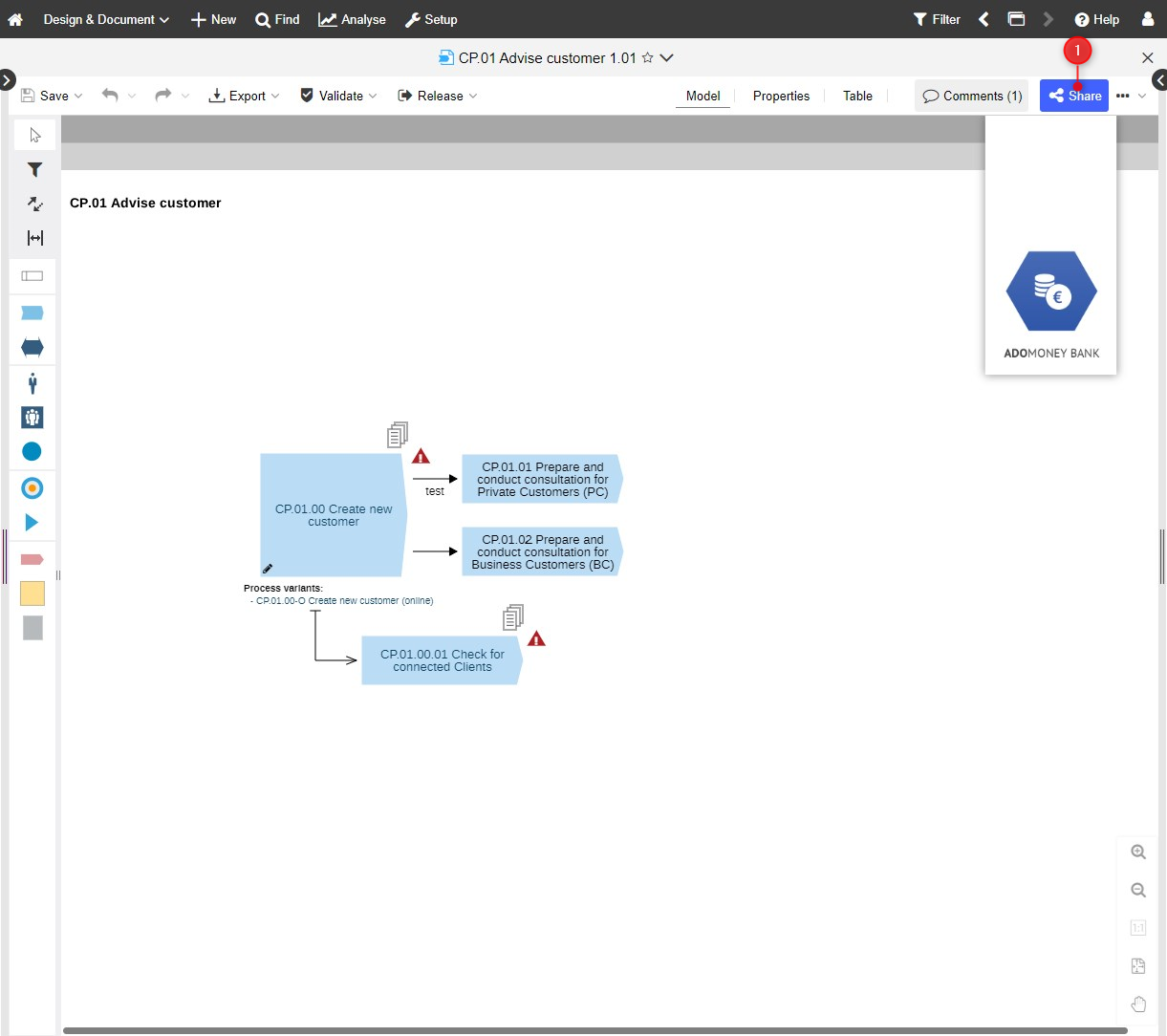

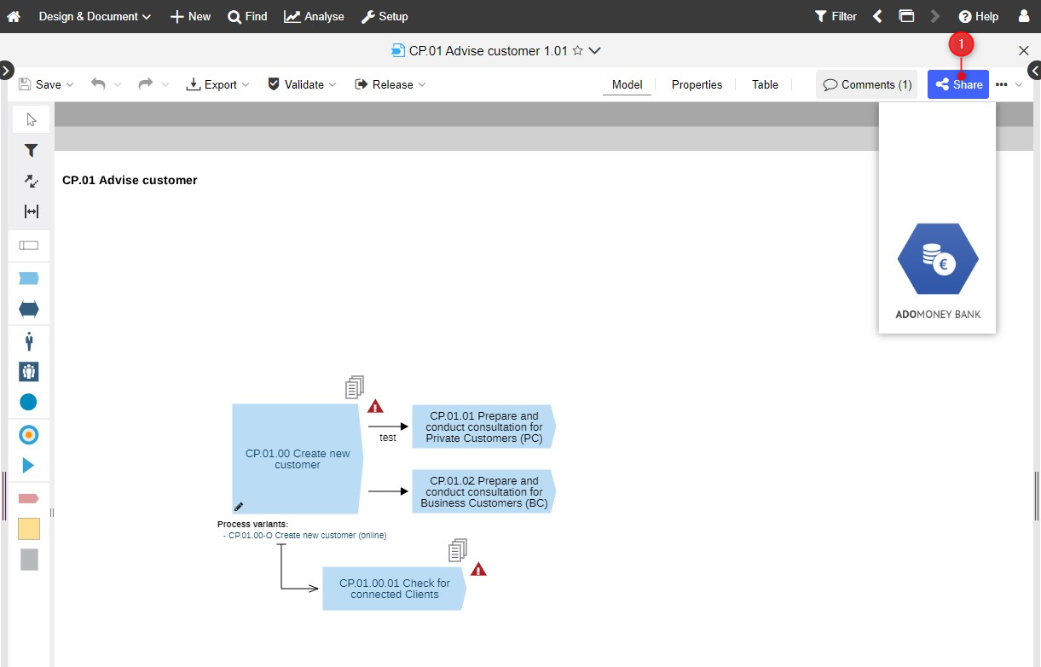

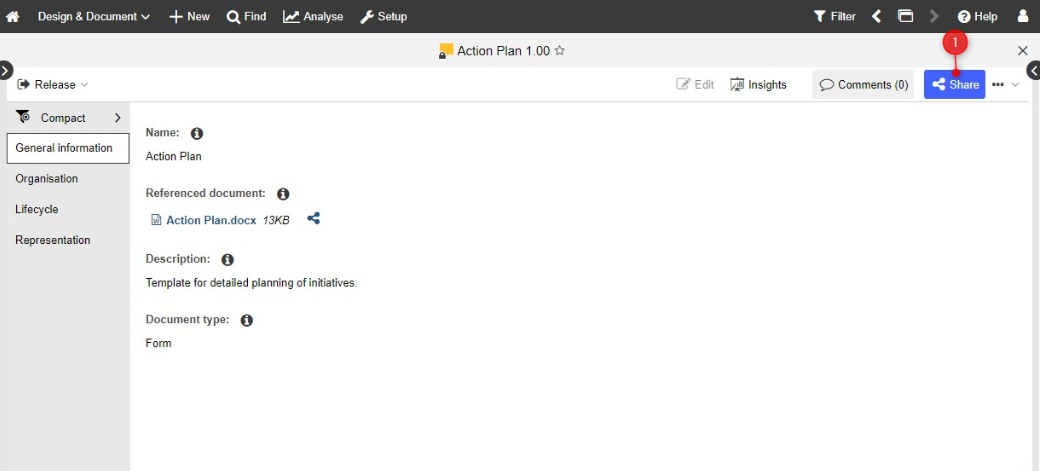

1	Open the model whose ID you want to find out and click on Share (1) at the top right.

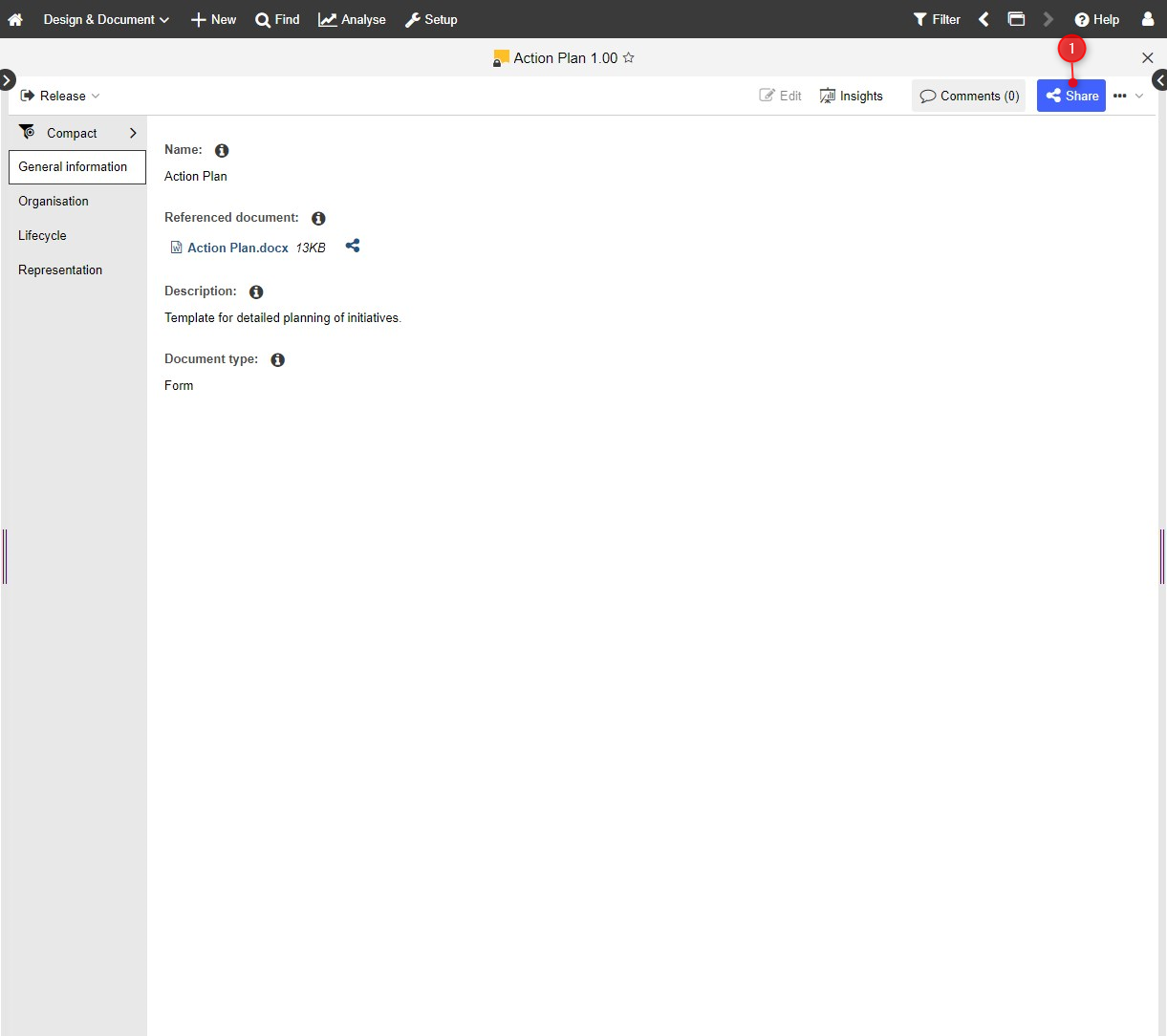

1.1	The process is similar for objects. Open the model whose ID you want to find out and click on Share (1) at the top right.

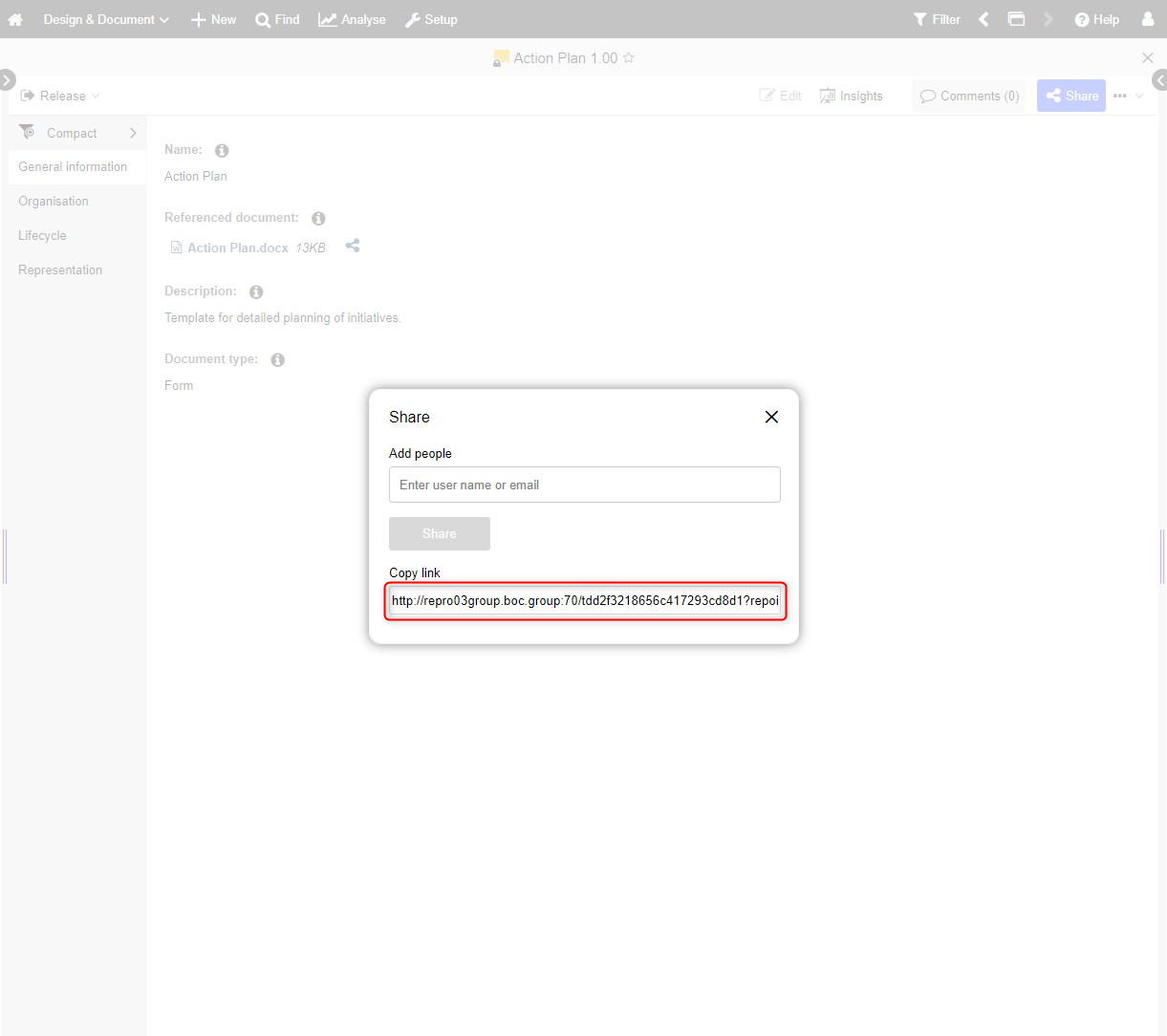

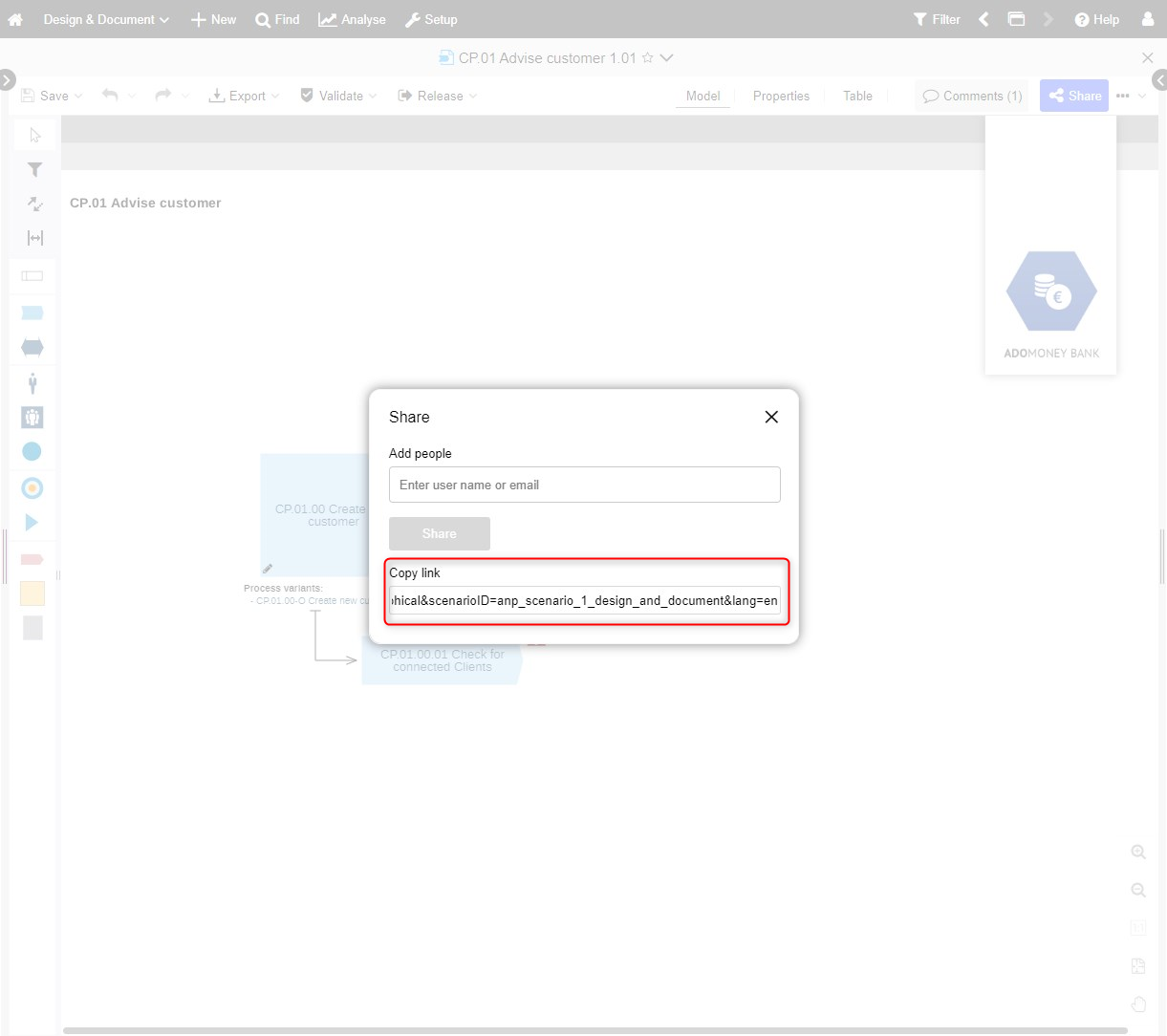

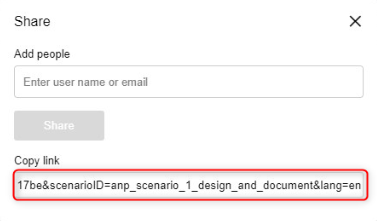

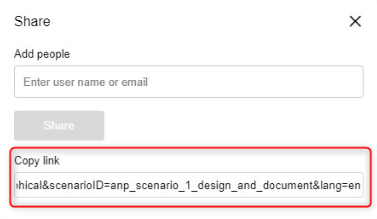

2	A pop-up will appear. Copy the URL from the Copy link field.
3	For example, you will receive the following URL:	https://ADOxx:8080/j2c5e41b197c341ac80021d7 ?repoid=a8bdfa71-4d18-4ea7-b63d-37b4ac8fd331 &id=3a08368b-b7f5-4f8f-8cee-a880edebb850 &libObjID=14a6bed2-071f-42af-afc7-9b00e6ae97a2 &at=1&t=view&vt=graphical &scenarioID=anp_scenario_1_design_and_document&lang=en
4	The ID of the model or object begins after the id=.	In the example given: 3a08368b-b7f5-4f8f-8cee-a880edebb850.

Saved searches

Step	Description

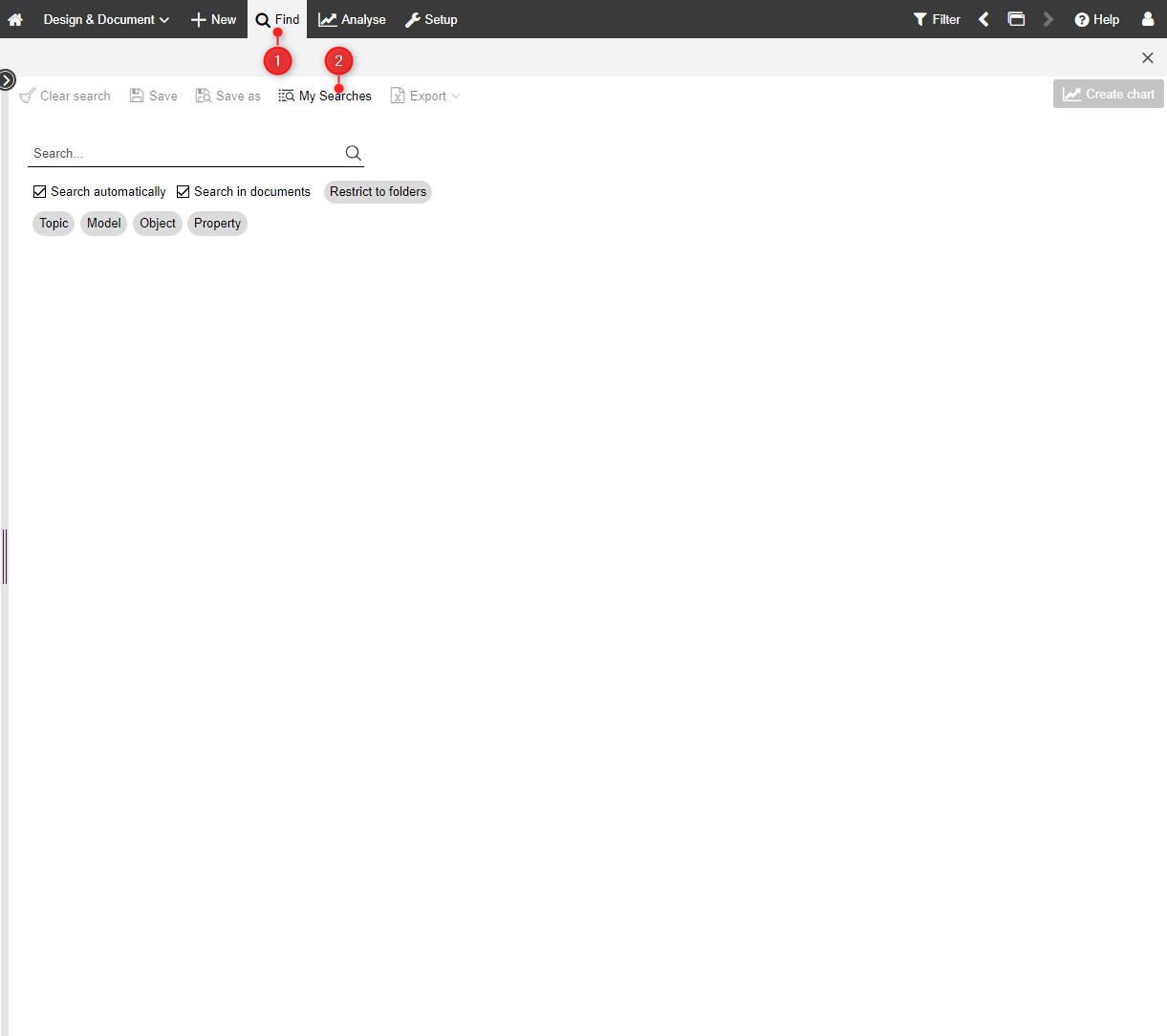

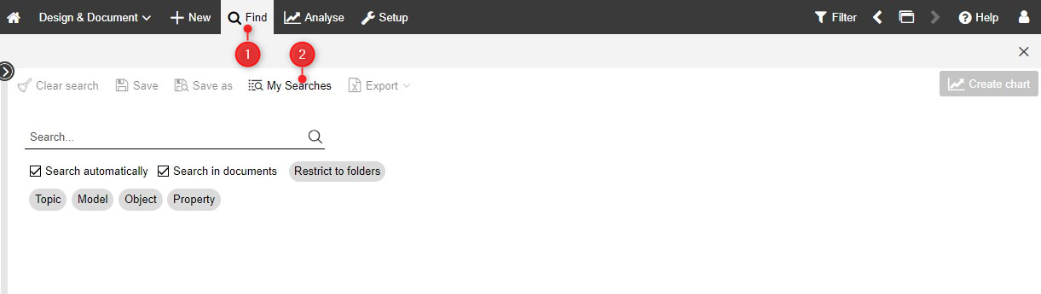

1	Switch to the Find (1) tab and select My Searches (2).

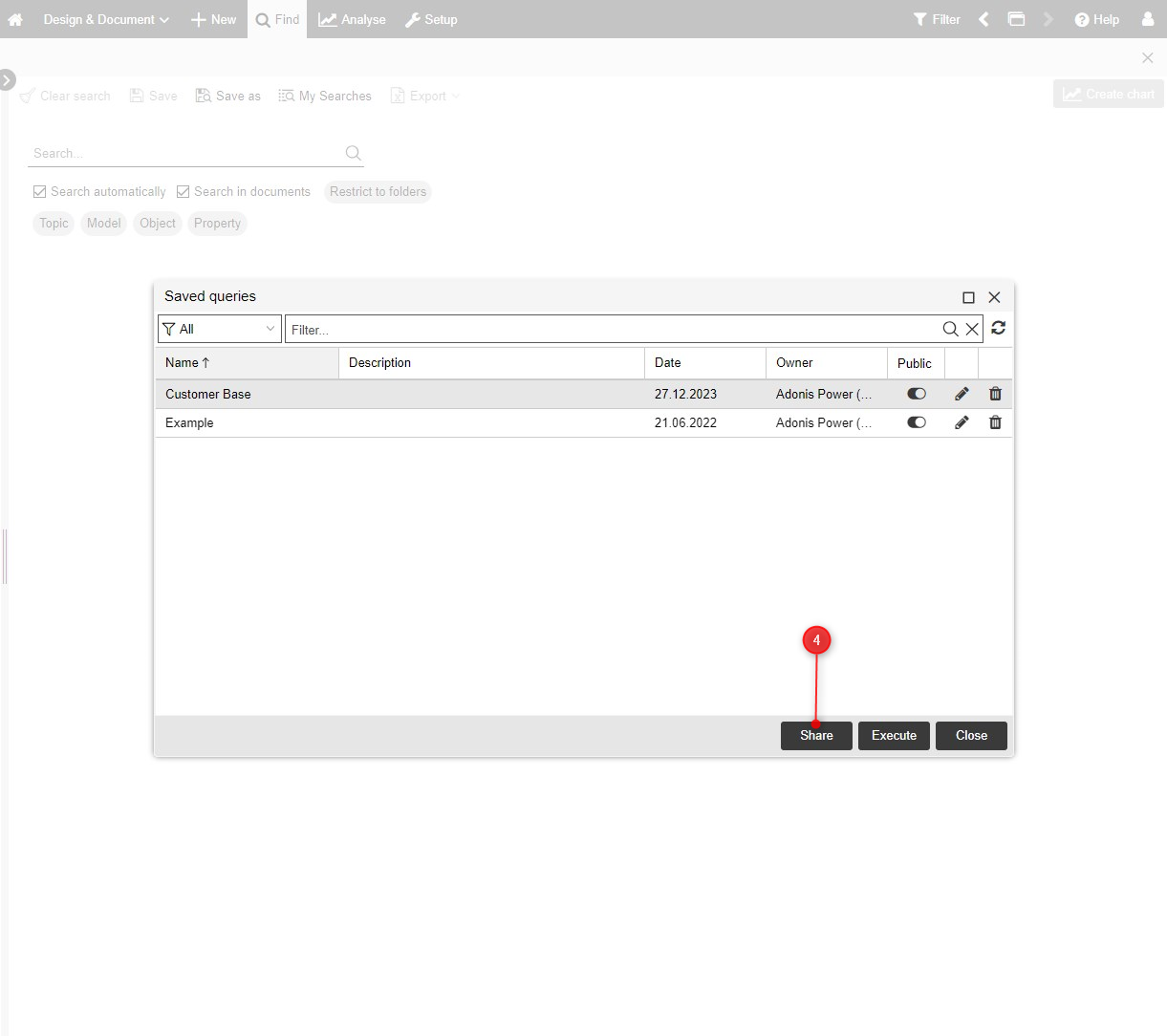

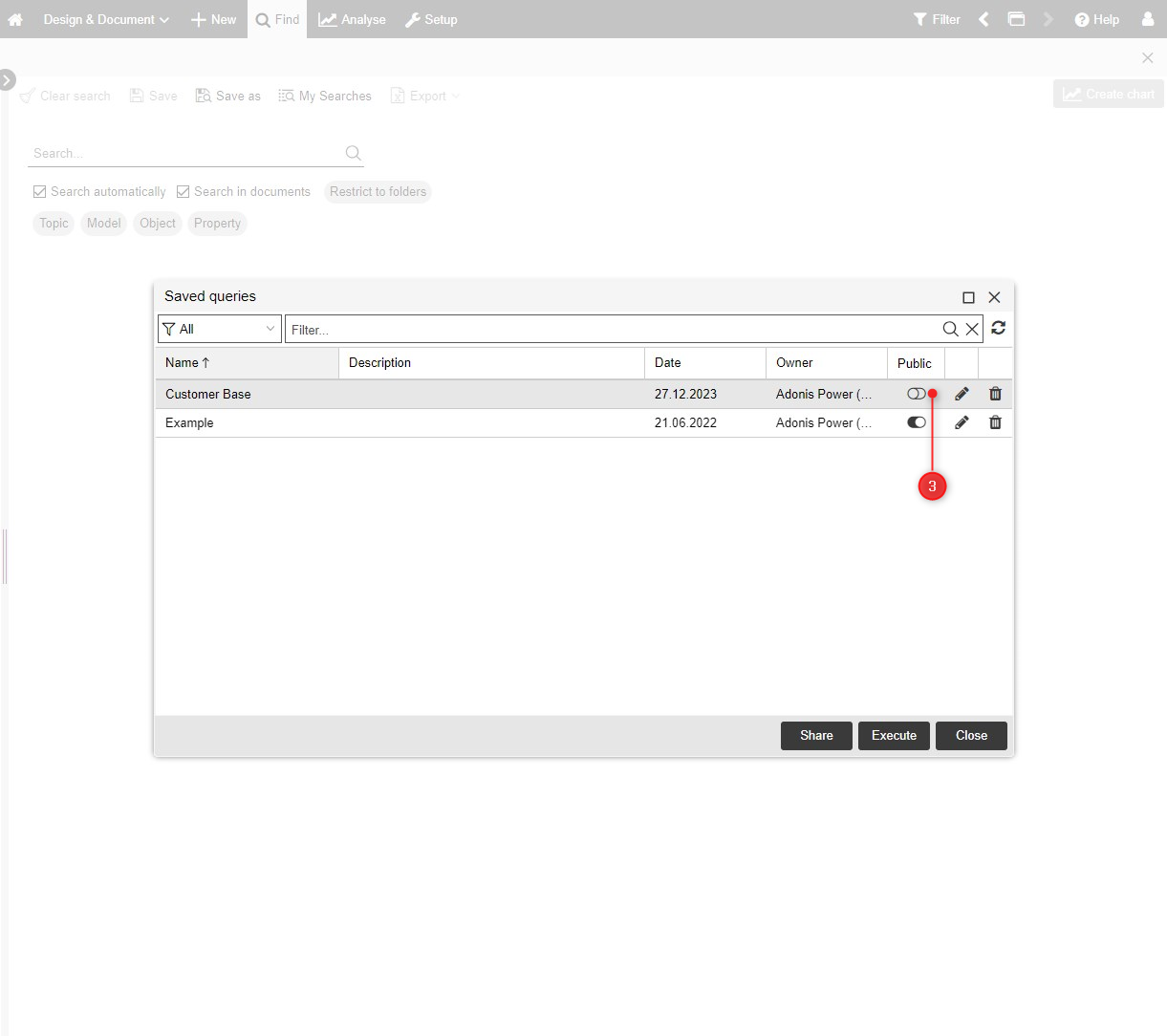

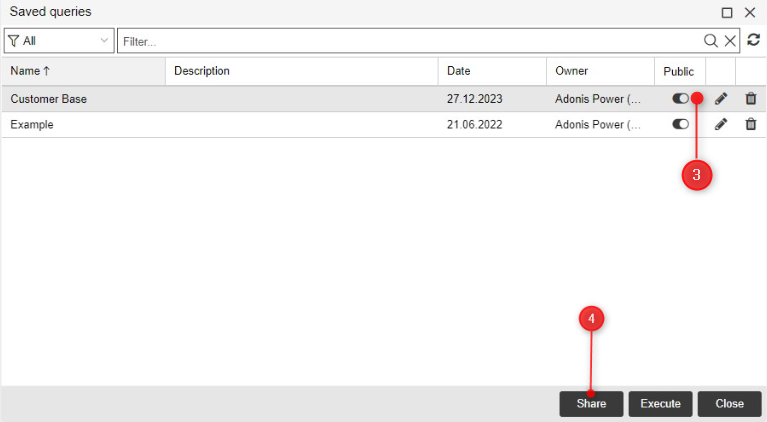

2	Ensure the search is visible to all users and the Public (3) is activated. Select the search for which you want to find the ID and click Share (4).

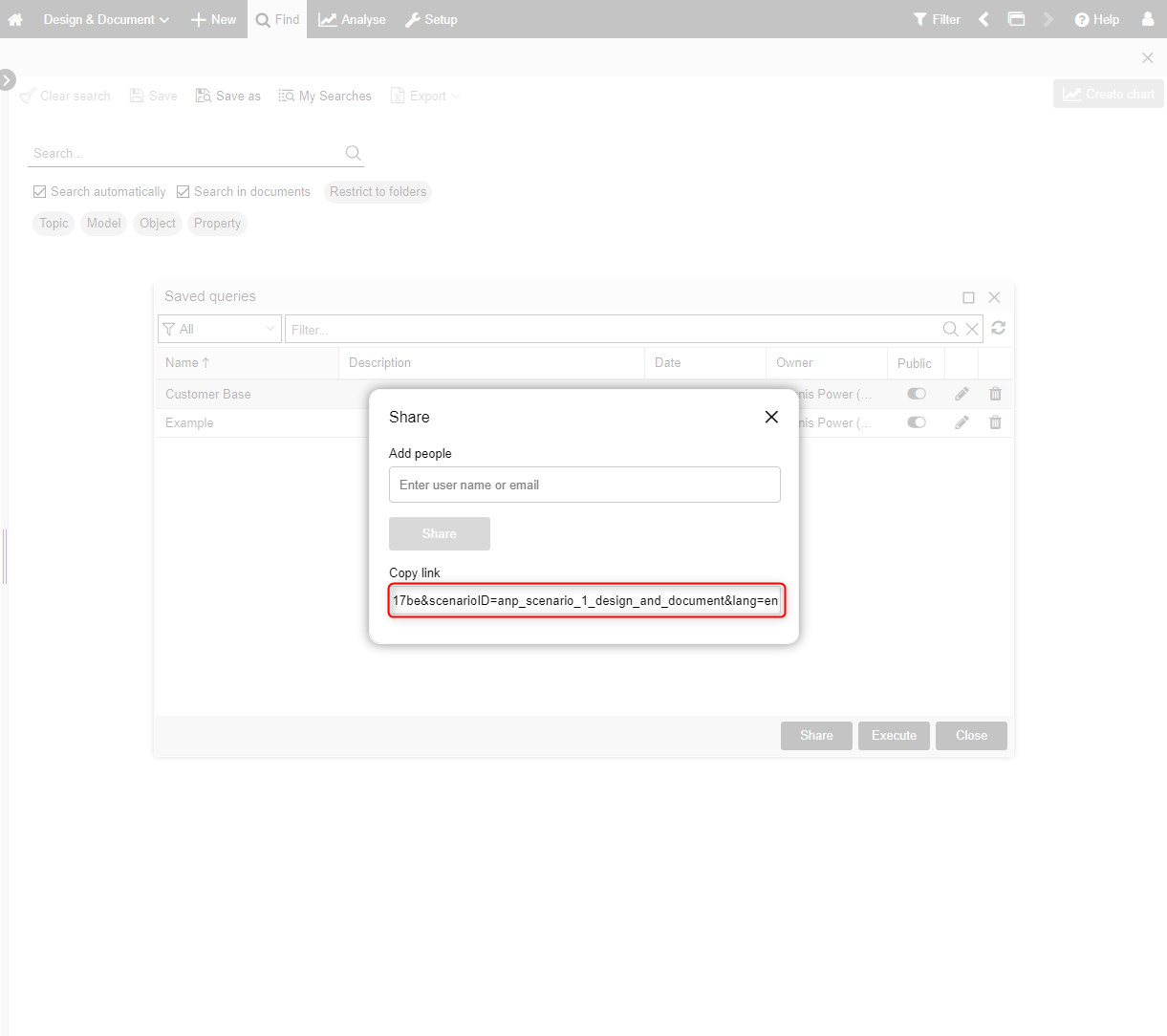

3	A pop-up will appear. Copy the URL from the Copy link field.
4	For example, you will receive the following URL:	https://ADOxx:8080/tdd2f3218656c417293cd8d1 ?sqid=02cbc927-549e-4650-89ea-80dfb3eb1bac &repoid=778afdac-7021-472d-91f0-5d7282c017be &scenarioID=anp_scenario_1_design_and_document&lang=de
5	The ID of the saved search begins after sqid=.	in the example 02cbc927-549e-4650-89ea-80dfb3eb1bac.

Determination via web client:​

This guide applies to ADONIS 16, ADOIT 17, and ADOGRC 13 and later versions. For instructions applicable to earlier versions, please click here.

Models and Objects:

Steps	Description

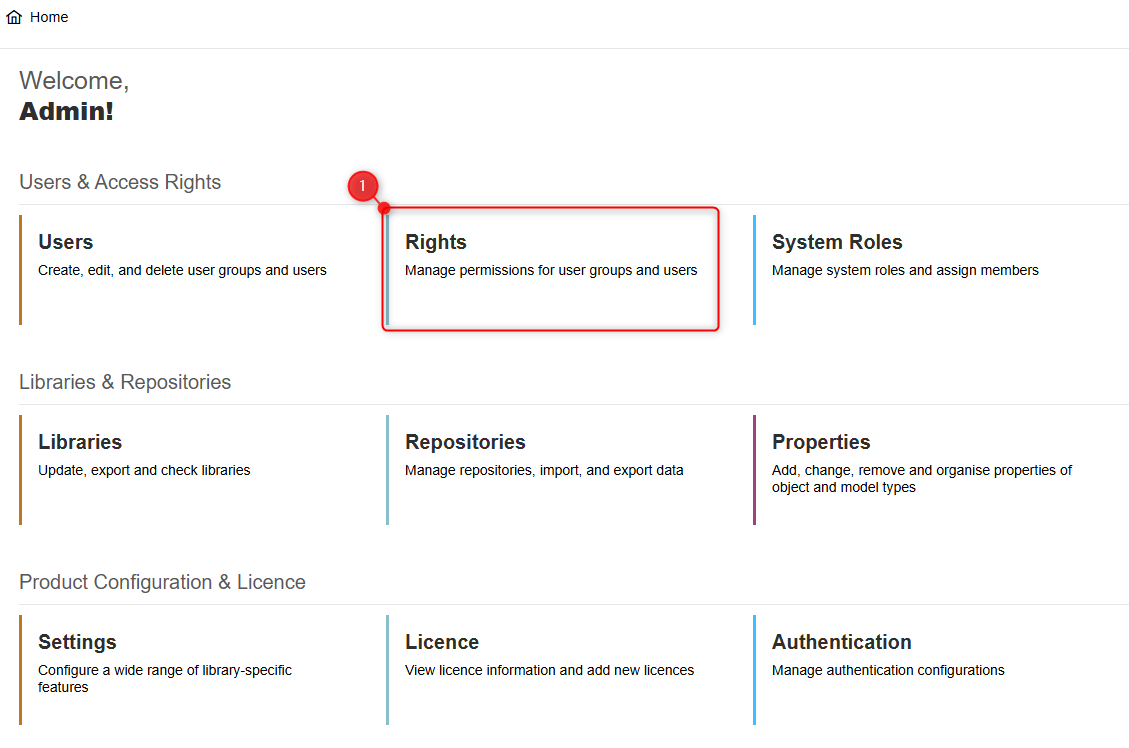

1	Open the Administration Toolkit (ATK), and select the Rights (1).

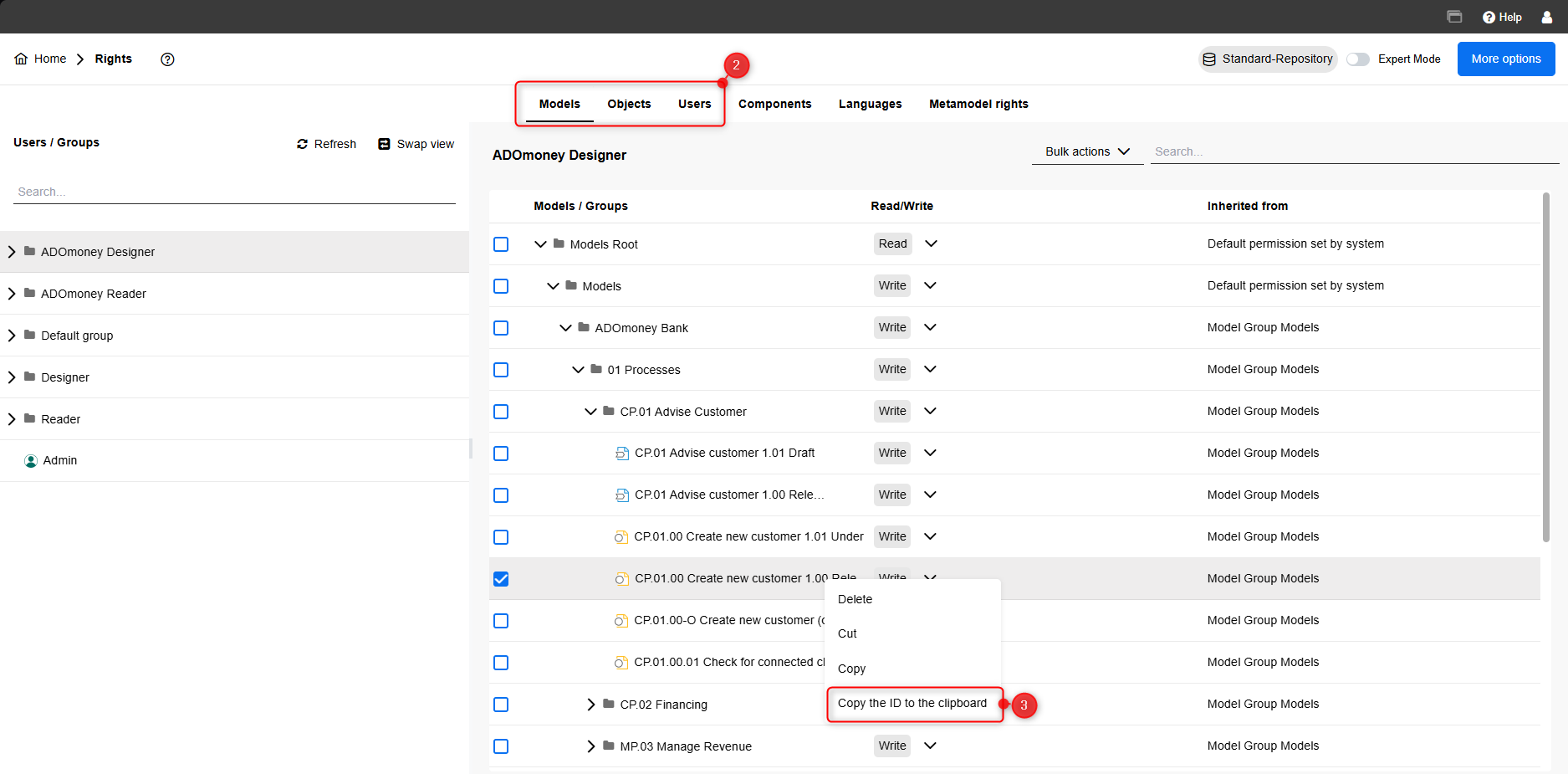

2	Switch to the Object/Model tab (2) navigate to the model/object whose ID you want to find out, then right-click. Finally, select Copy ID to clipboard (3) to retrieve the ID.

Users

Steps	Description

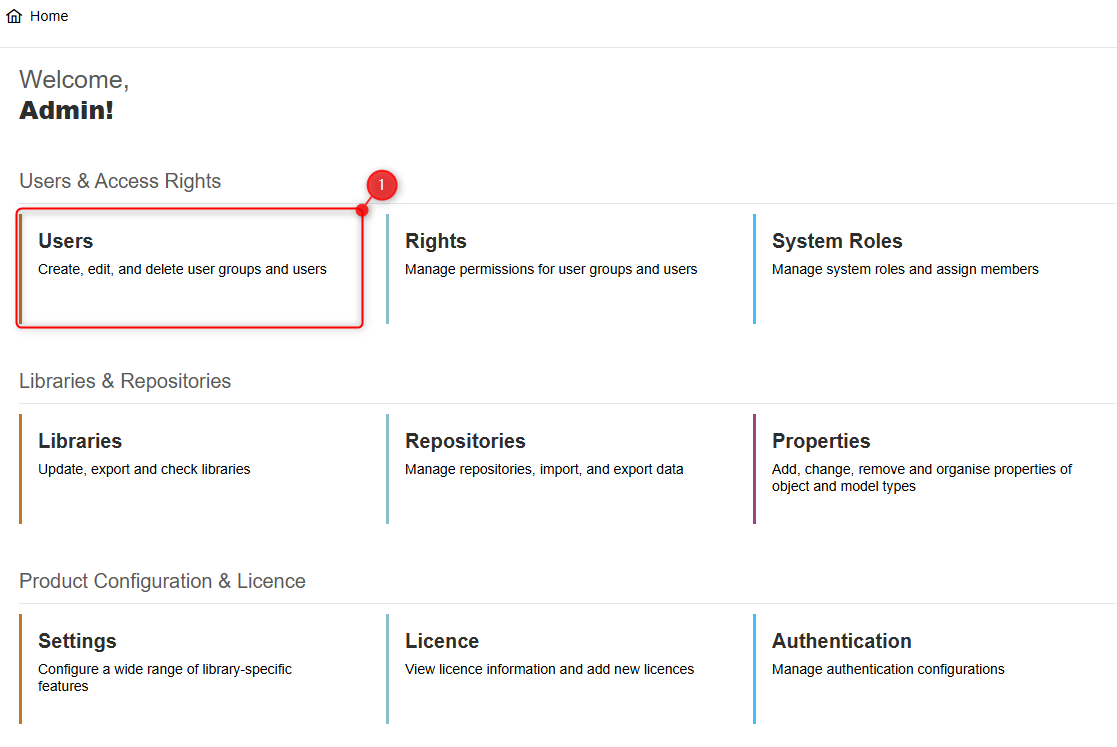

1	Open the Administration Toolkit (ATK), and select the Users (1).

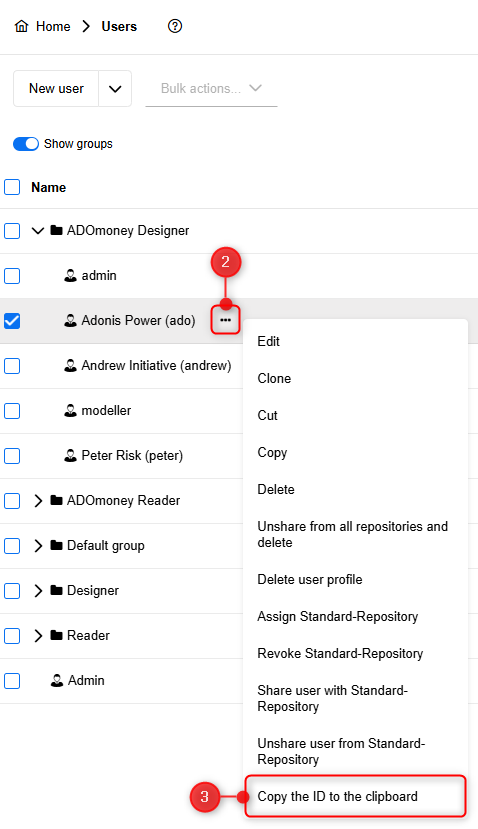

2	Click on the three dots or right-click (2) on the user whose ID you want to find out, then select Copy ID to clipboard (3) to retrieve the ID.

Determination via rich client:

These instructions apply to versions prior to ADONIS 16, ADOIT 17 and ADOGRC 13. For instructions that apply to later versions, please click here.

Models and Objects:

The steps described below apply to both objects and models.

Step	Description

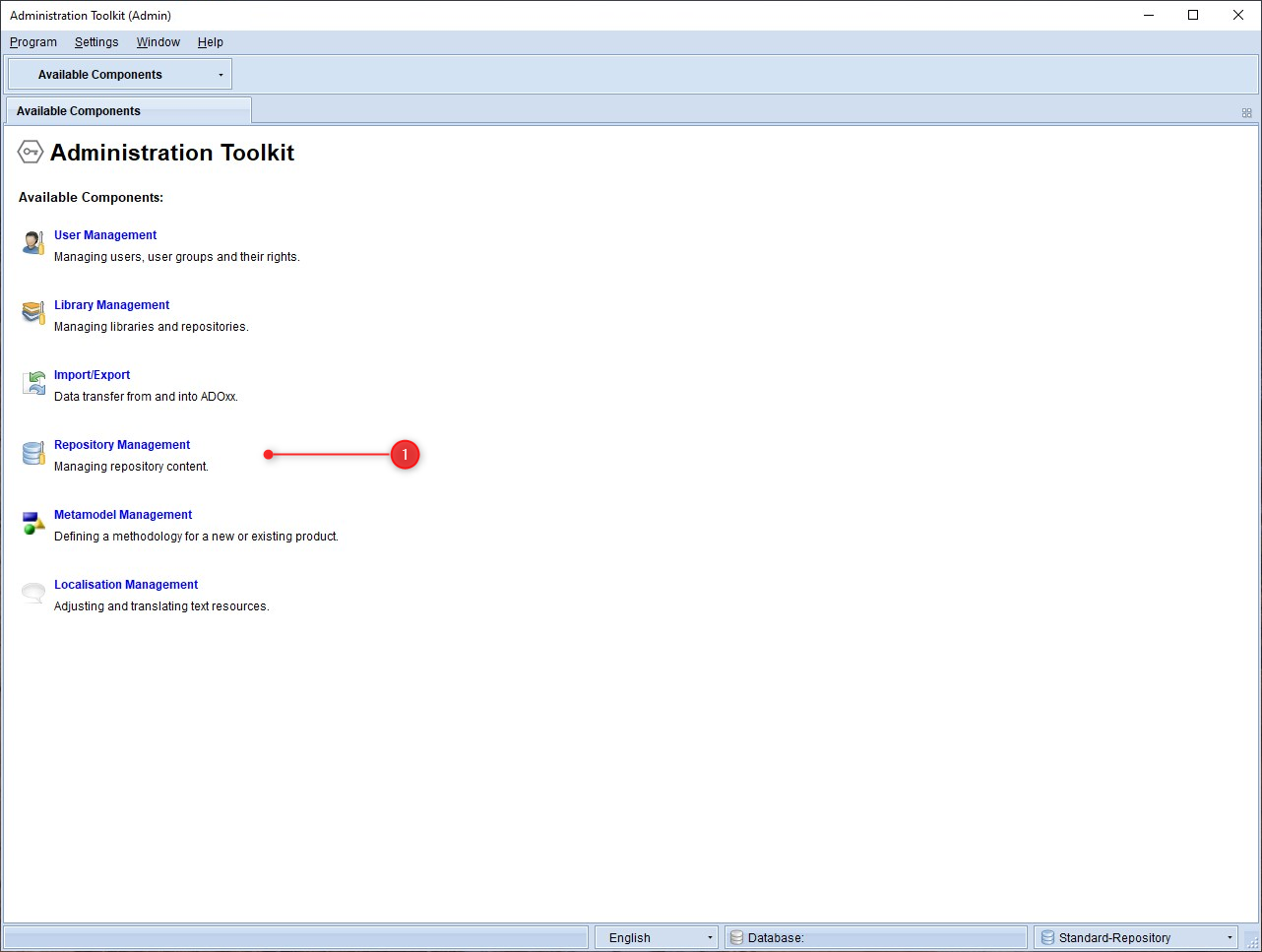

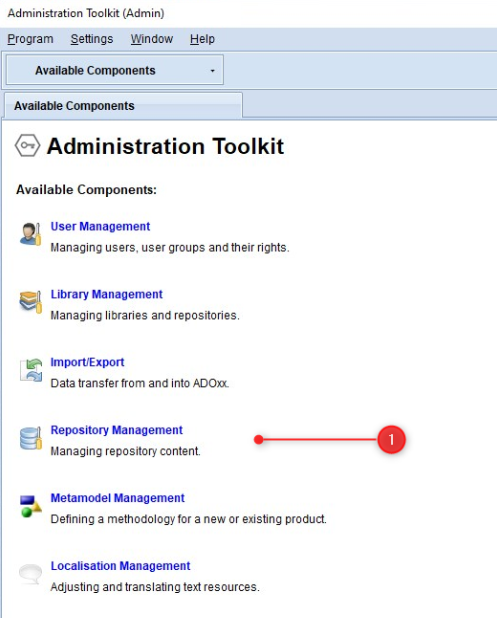

1	Open the Administration Toolkit (ATK), and select the Repository Management (1).

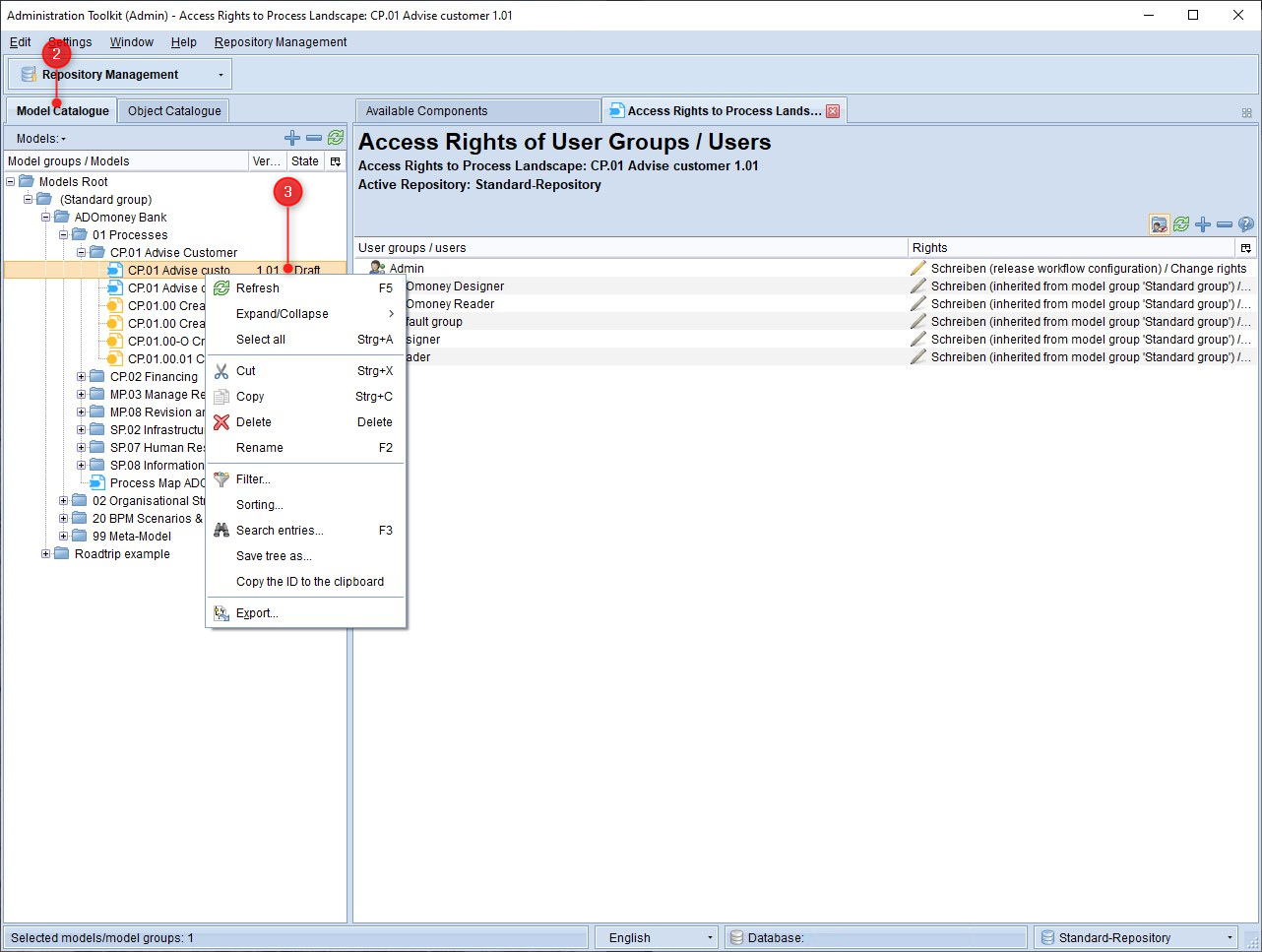

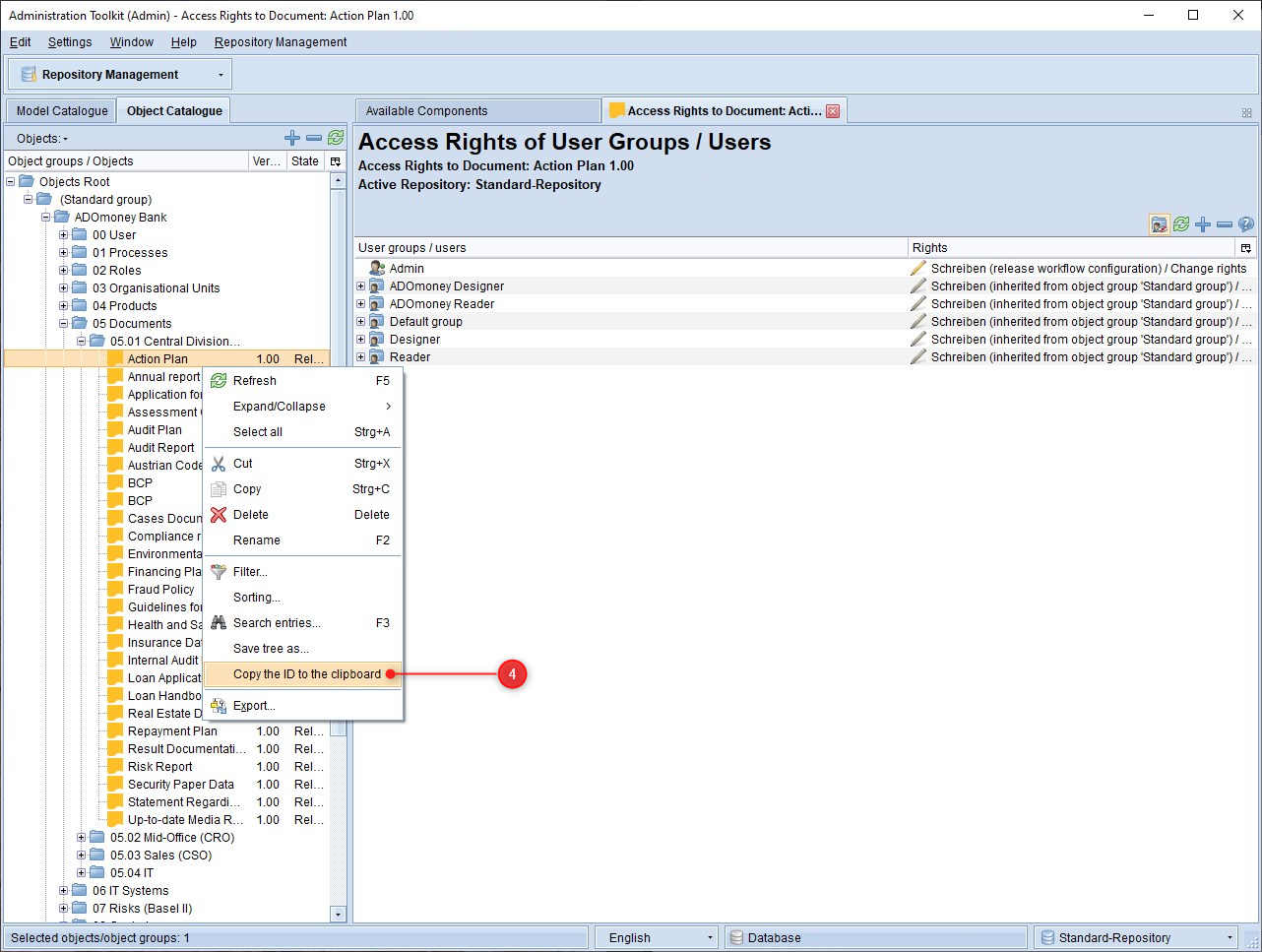

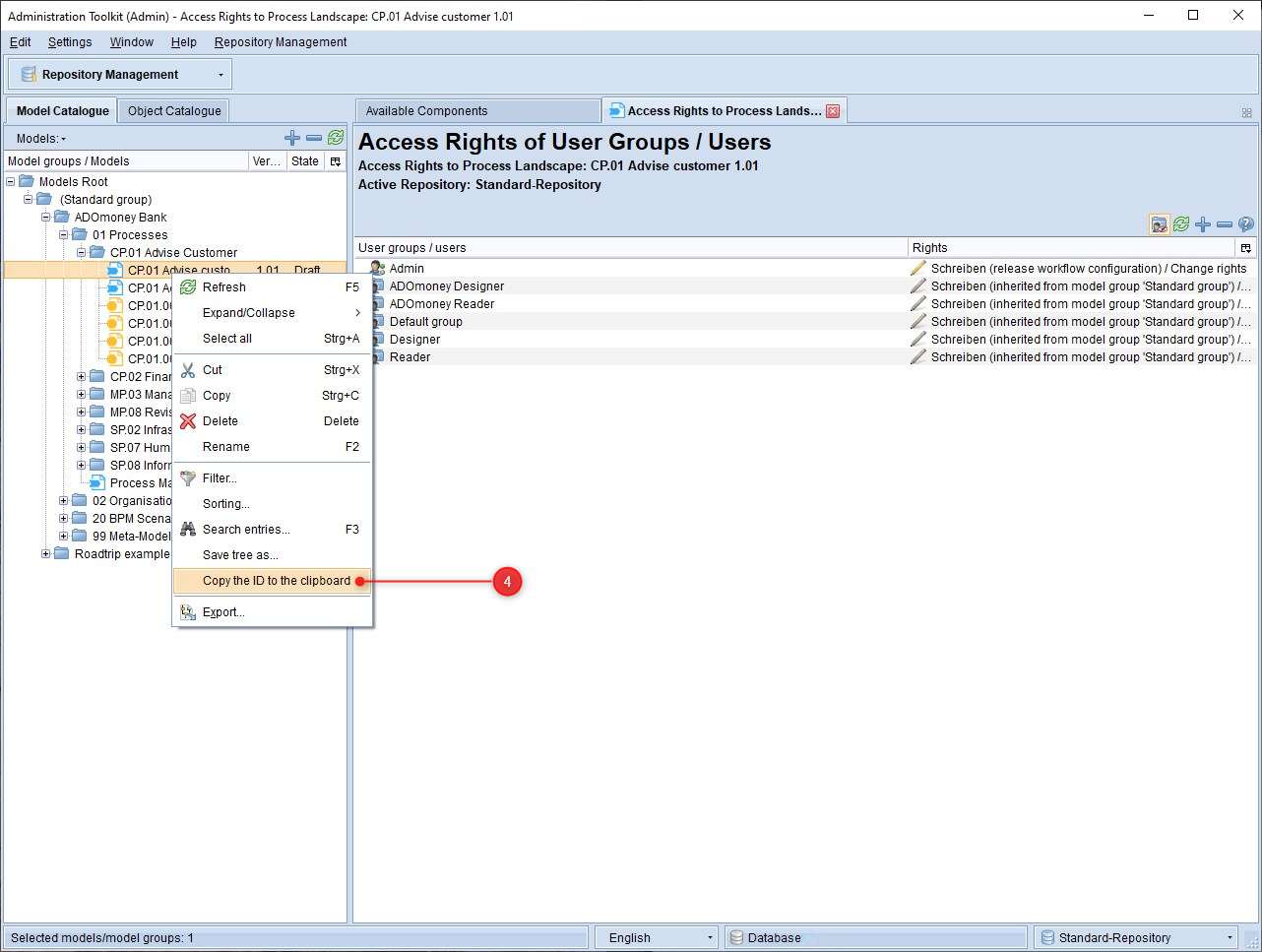

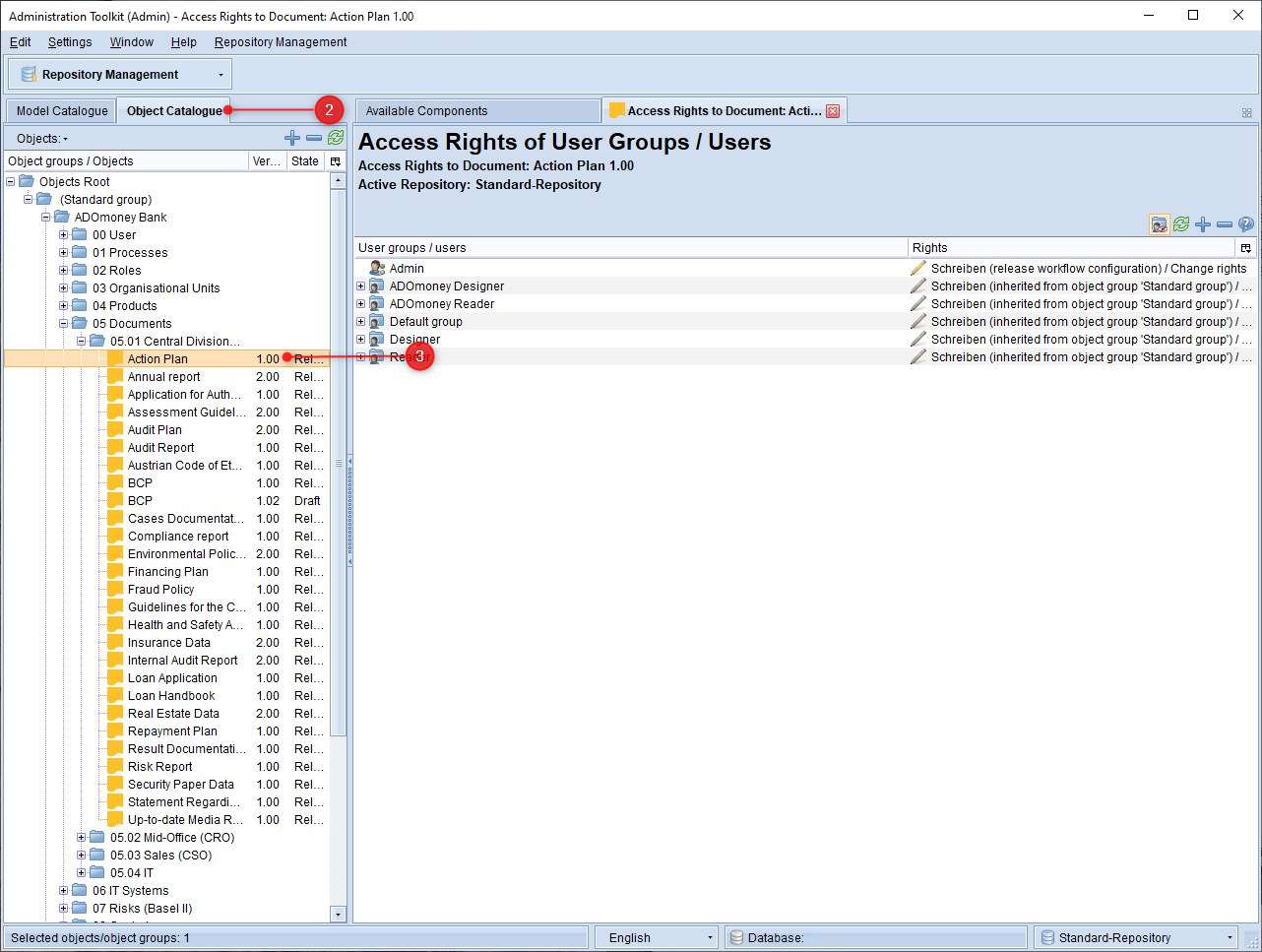

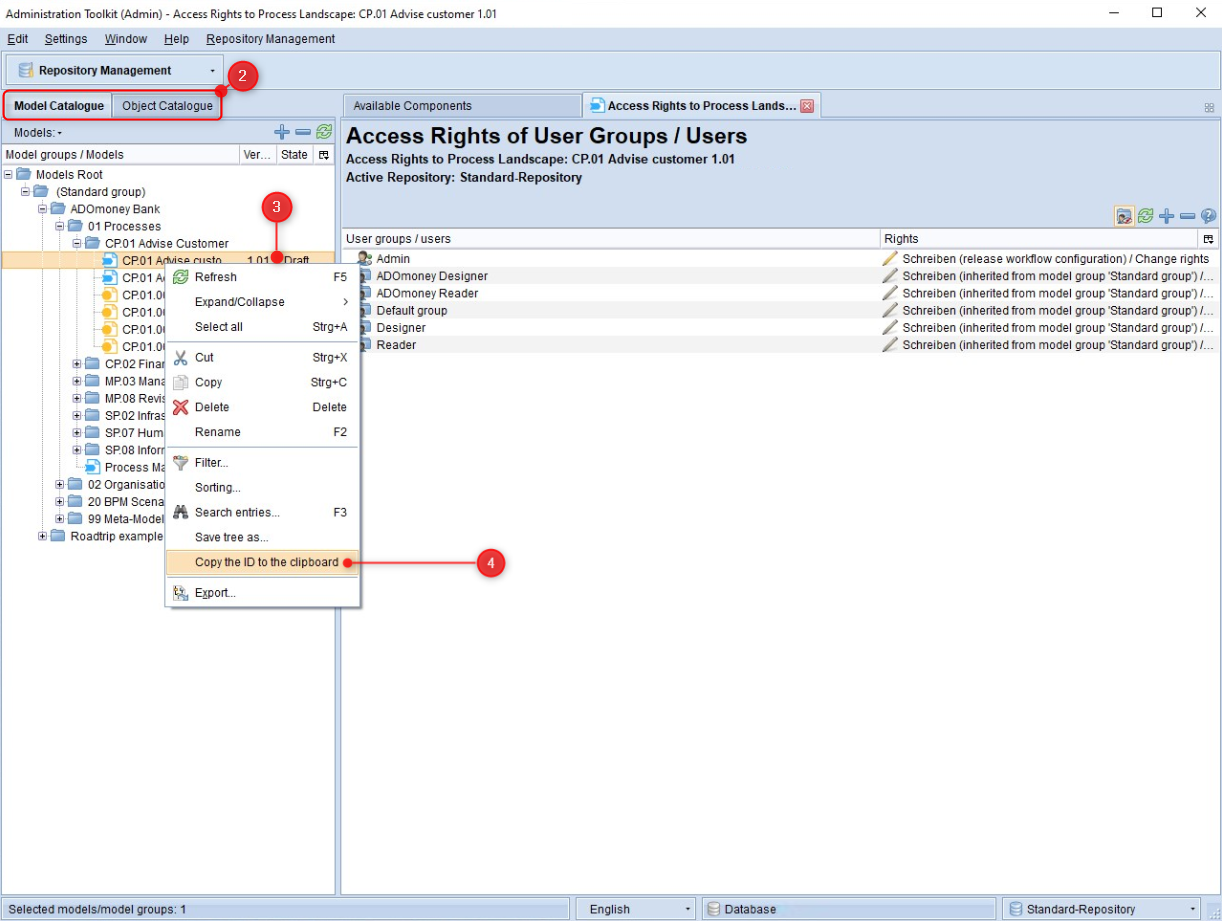

2	Switch to the Object/Model Catalogue (2) navigate to the model/object whose ID you want to find out, then right-click (3). Finally, select Copy ID to clipboard (4) to retrieve the ID.

Users:

Steps	Description

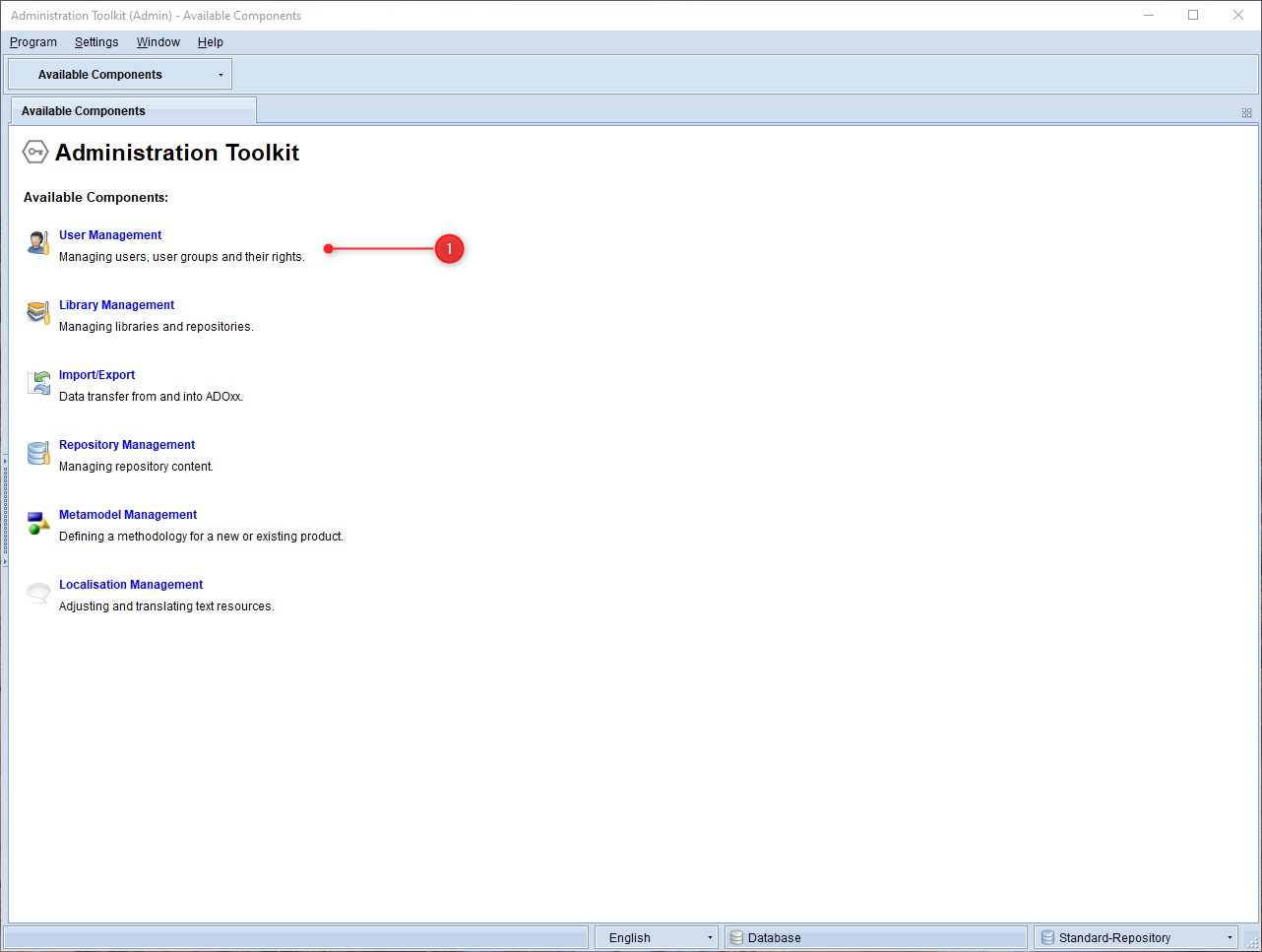

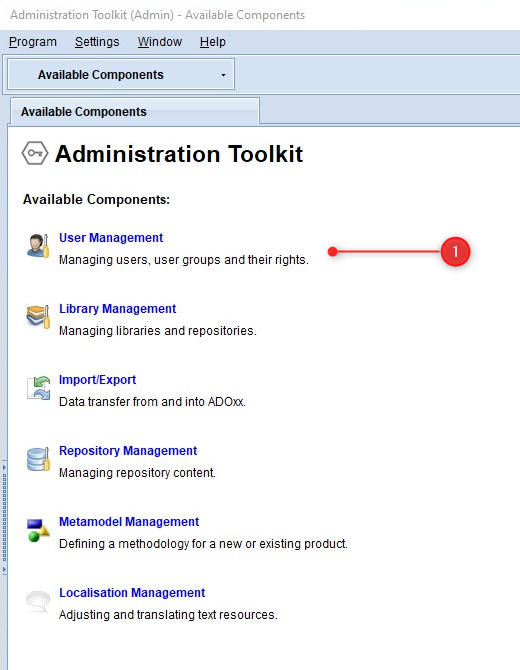

1	Open the Administration Toolkit (ATK) and select User Management (1).

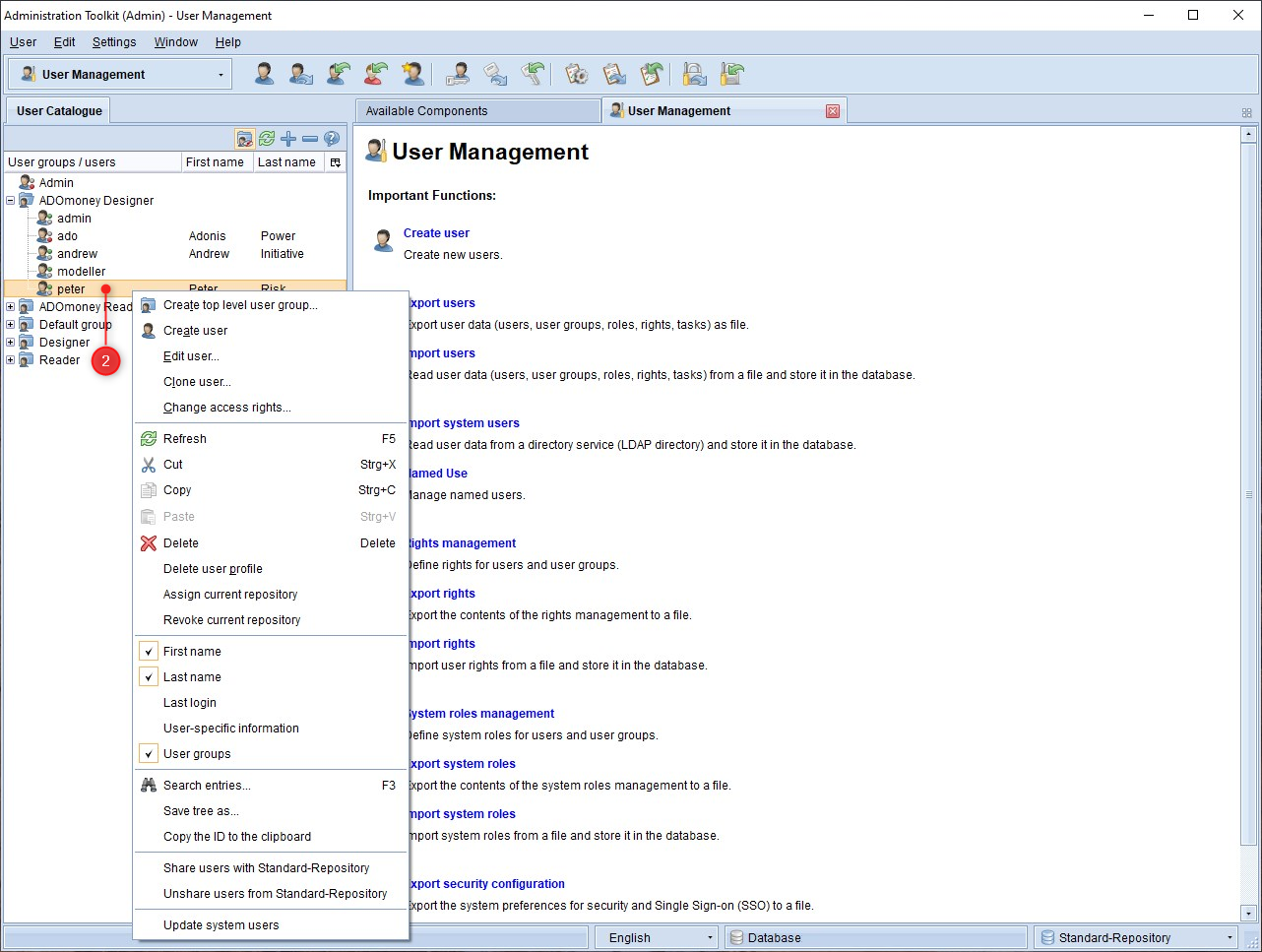

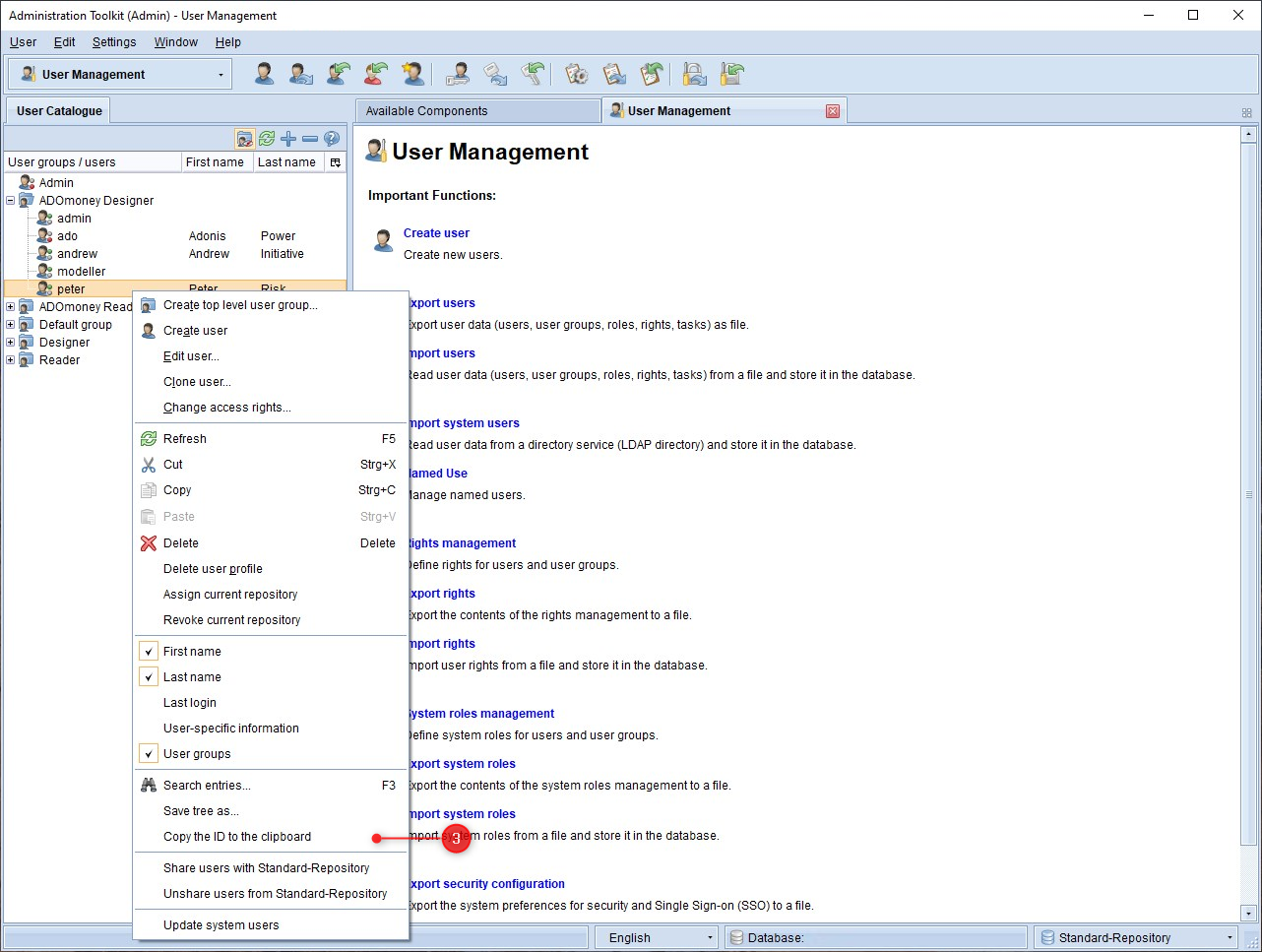

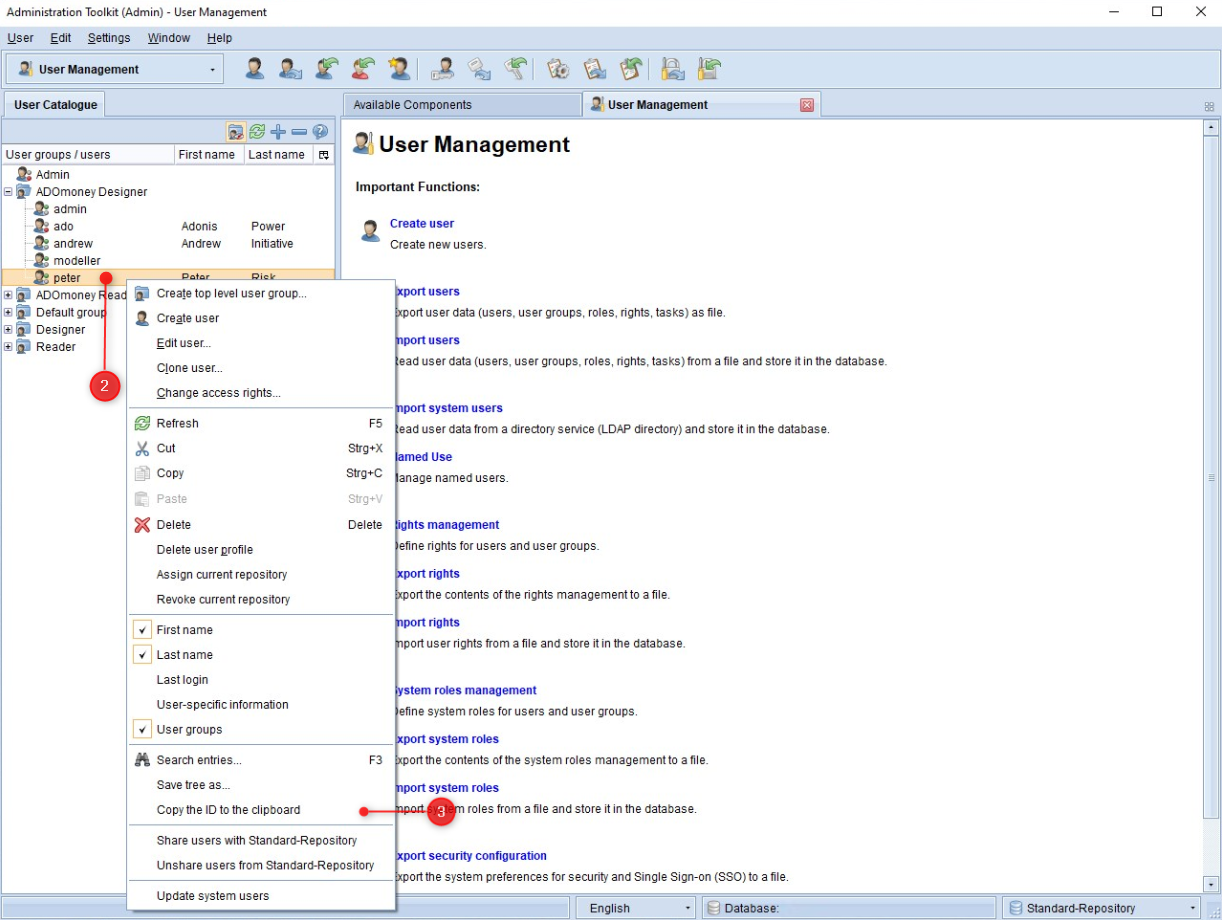

2	Find the user whose ID you want to find out and right-click (2). Finally, select Copy ID to clipboard (3) retrieve the ID.
